DotNetBrowser 中的 Google Maps

DotNetBrowser connects the two sides in both directions. From .NET, an IJsObject holds a live reference to a JavaScript object, so you can read its properties and call its methods. From the page, an object injected as window.external lets JavaScript call into your .NET code. The application built here uses both directions: .NET changes the zoom level and adds markers, and the page reports back when the map is ready and when it has determined the current position.

The complete example is available in the DotNetBrowser-Examples repository, for C# and VB.NET.

Prerequisites

You need a Google Maps JavaScript API key. Create one in the Google Cloud console and enable the Maps JavaScript API for it.

This tutorial loads the map page from the local file system, and a page loaded that way sends no referrer, so Google rejects a key restricted by HTTP referrer with RefererNotAllowedMapError. Use an unrestricted key while you work through the tutorial.

Treat that as a local development setting rather than something to ship. In production, serve the page over HTTP or HTTPS from an origin you control, and restrict the key to that origin.

Loading the map

Put the map in an HTML file next to your application. Google loads the Maps JavaScript API through an inline bootstrap loader, which fetches the library asynchronously and exposes google.maps.importLibrary():

<div id="map"></div>

<script>
    (g => {
        // The bootstrap loader, copied verbatim from the Google documentation.
    })({
        key: "API_KEY",
        v: "weekly"
    });
</script>

Replace API_KEY with your own key. The full loader body is in the map.html file of the example.

Next, create the map. importLibrary() returns a promise, so the code that builds the map runs asynchronously:

let map;

async function initMap() {
    const {Map} = await google.maps.importLibrary("maps");
    await google.maps.importLibrary("marker");

    map = new Map(document.getElementById("map"),
        {
            center: {lat: 48.209331, lng: 16.381302},
            zoom: 4,
            mapId: "DEMO_MAP_ID"
        });

    window.external.OnMapInitialized(map);
}

initMap();

Three details matter here. The map variable is global, which is what lets .NET reach the map later. The marker library is imported up front, so that adding a marker from .NET does not have to wait for a promise. And the call to window.external at the end hands the finished map to .NET — the next section covers how that object gets there.

Load the page through a file:// URI rather than a bare Windows path:

browser.Navigation.LoadUrl(new Uri(Path.GetFullPath("map.html")).AbsoluteUri);

Connecting the page to .NET

The page above calls window.external.OnMapInitialized(map), but external is not a standard browser object. You put it there, by handling InjectJsHandler. DotNetBrowser invokes that handler after it creates the JavaScript context and before the page scripts run:

// Inject this form into the page as window.external, so that
// map.html can call back into .NET.
browser.InjectJsHandler = new Handler<InjectJsParameters>(OnInjectJs);

' Inject this form into the page as window.external, so that
' map.html can call back into .NET.
browser.InjectJsHandler = New Handler(Of InjectJsParameters)(AddressOf OnInjectJs)

The handler assigns the form itself to window.external, which makes the form’s public methods callable from JavaScript. OnMapInitialized is one of them. It receives the JavaScript map as an IJsObject and stores it:

/// <summary>
///     Called from map.html once the Maps JavaScript API has loaded and
///     the map has been created.
/// </summary>
public void OnMapInitialized(IJsObject jsMap)
{
    map = new GoogleMap(jsMap);
    BeginInvoke((Action) (() => mapControls.Enabled = true));
}

''' <summary>
'''     Called from map.html once the Maps JavaScript API has loaded and
'''     the map has been created.
''' </summary>
Public Sub OnMapInitialized(jsMap As IJsObject)
	map = New GoogleMap(jsMap)
	BeginInvoke(New Action(Sub() mapControls.Enabled = True))
End Sub

Waiting for this callback is what makes the rest of the application reliable. The map does not exist until importLibrary() resolves, so any code that touches it before OnMapInitialized runs would fail. The example keeps its toolbar disabled until then.

For more on calling between .NET and JavaScript, see the JavaScript guide.

Changing the zoom

With the map in hand, IJsObject gives you its methods. Wrapping it in a small class keeps the JavaScript details in one place:

public int Zoom
{
    get { return (int) map.Invoke<double>("getZoom"); }

    set
    {
        int zoom = Math.Min(MaxZoomLevel, Math.Max(MinZoomLevel, value));
        map.Invoke("setZoom", zoom);
    }
}

Public Property Zoom() As Integer
	Get
		Return CInt(map.Invoke(Of Double)("getZoom"))
	End Get

	Set
		Dim zoomLevel As Integer = Math.Min(MaxZoomLevel, Math.Max(MinZoomLevel, Value))
		map.Invoke("setZoom", zoomLevel)
	End Set
End Property

Invoke calls the JavaScript function and returns its result, converted to the requested .NET type. Google Maps returns the zoom level as a JavaScript number, which arrives as a double.

The same rule applies in the other direction. A method that JavaScript calls through window.external runs on the browser thread, so it should not make another blocking JavaScript call.

Adding markers

Markers are JavaScript objects too, and you can create them from .NET. Build the object in the page context, then set its properties:

// Create the marker in the page context and attach it to the map.
IJsObject marker = Frame
                  .ExecuteJavaScript<IJsObject>(
                       "new google.maps.marker.AdvancedMarkerElement({map: map})")
                  .Result;

// AdvancedMarkerElement exposes the position as a property rather
// than through a setter method.
marker.Properties["position"] = ToLatLngLiteral(latitude, longitude);

' Create the marker in the page context and attach it to the map.
Dim marker As IJsObject =
	Frame.ExecuteJavaScript(Of IJsObject)(
		"new google.maps.marker.AdvancedMarkerElement({map: map})").Result

' AdvancedMarkerElement exposes the position as a property rather
' than through a setter method.
marker.Properties("position") = ToLatLngLiteral(latitude, longitude)

ExecuteJavaScript<IJsObject> evaluates the constructor call and returns a reference to the new marker. Assigning to Properties["position"] then sets the marker’s position, exactly as JavaScript assignment would.

ExecuteJavaScript returns a task, and reading .Result waits for it. That blocks the calling thread just as Invoke does, so the same rule applies: the example reaches this method from a background thread.

Two constraints come from Google Maps rather than from DotNetBrowser. Advanced markers render only on a map created with a map ID, which is why initMap() passes mapId. And they replace google.maps.Marker, which Google deprecated in February 2024.

The position is built with the invariant culture on purpose. JSON requires a dot as the decimal separator, so a locale that uses a comma would produce coordinates the page cannot parse.

Enabling geolocation

The example’s “My location” button asks the page for the current position. Chromium treats geolocation as a permission and denies it by default, so the application has to grant it through a handler on the profile:

// navigator.geolocation asks for a permission, which is denied
// unless a permission handler grants it.
engine.Profiles.Default.Permissions.RequestPermissionHandler =
    new Handler<RequestPermissionParameters, RequestPermissionResponse>(p =>
        p.Type == PermissionType.Geolocation
            ? RequestPermissionResponse.Grant()
            : RequestPermissionResponse.Deny());

' navigator.geolocation asks for a permission, which is denied
' unless a permission handler grants it.
engine.Profiles.Default.Permissions.RequestPermissionHandler =
	New Handler(Of RequestPermissionParameters, RequestPermissionResponse)(
		Function(p)
			If p.Type = PermissionType.Geolocation Then
				Return RequestPermissionResponse.Grant()
			End If
			Return RequestPermissionResponse.Deny()
		End Function)

The Permissions guide covers the handler in detail.

Troubleshooting

The map appears for a moment, then is replaced by “Oops! Something went wrong.” Google validates the API key after the first tiles render, so a key problem surfaces a second or two late. The key is missing, invalid, or restricted by HTTP referrer. Open the DevTools console for the specific error code.

Markers never appear, and the map is otherwise fine. The map was created without a map ID. Advanced markers need one.

Geolocation fails with an empty error message. Chromium reports an empty GeolocationPositionError.message when it cannot reach the location service. Configure the engine-level Google API keys.

Result

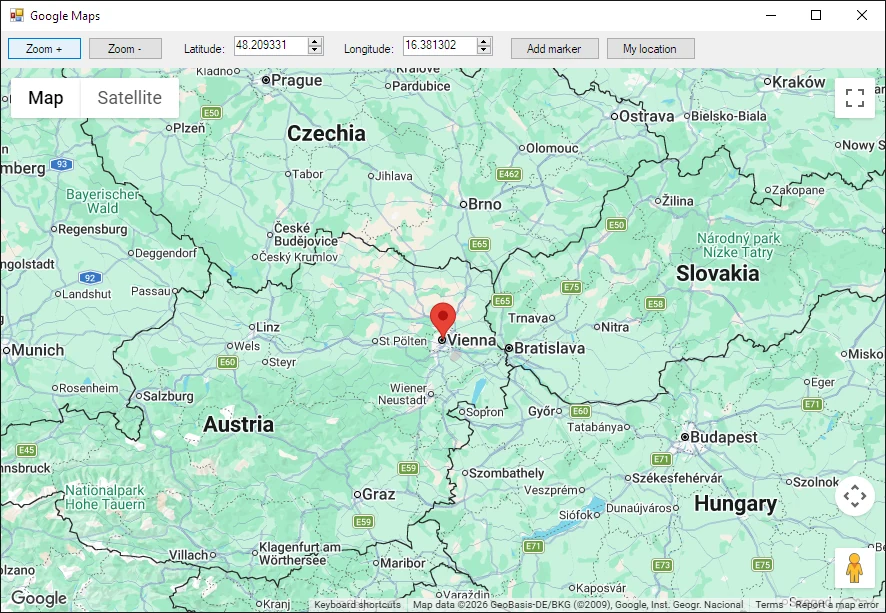

The application displays a map, moves it between zoom levels, and drops a marker at the coordinates you type:
